Allegro

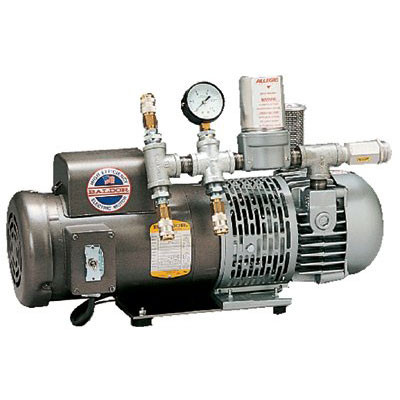

Allegro 9833 Ambient Air Pump - 1 Each
- SKU:
- AL-9833
- UPC:
- 806808001580
- MPN:
- SC-GMC-MPN-590
- Availability:
- Ship 3-5 business days
- Weight:
- 122.00 LBS
- Width:
- 10.00 (in)
- Height:
- 15.00 (in)
- Depth:
- 27.00 (in)
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 4 or above | and get 5% off |
Frequently bought together:
Description
The easiest way to meet your needs for portable air sources for up to three respirator users or two hood users. The A-1500EX meets Class I Div 1 & 2 Group D. Class II Div 1 & 2 Groups F & G.
Portable explosion proof air source for up to three full or half face respirator users, or two hood users. Solid performance in multiworker applications, sanding or chemical handling operations.
Construction:
- Rigid metal base & housing with four rubber feet
- Brass & galvanized steel pluming
- Quick-connect Rectus (OBAC) air fittings
- Adjustable brass pressure relief valve
- Pressure gauge 0-15 psi (0-1.03 bar)
- Fan guard
- Powder coated gray
Pump:
*Warning: Ambient Air Pumps are not to be used with generators
**Warning: Air inlet to the pump must be located where breathable air can be assured at all times
| Type: | Oil-less, rotary vane, direct driven |
| Vanes: | Carbon construction (4ea/replaceable) (3.5" (8.89cm) x 1.3" (3.40cm) x 0.188" (.47cm)) |
| Inlet Filter: | 50 micron felt material |
| Exhaust Filter: | 0.3 Micron HEPA |
| Working Pressure: | 2-12 psi (.14-.83 bar) (15 psi (1.03 bar) max) |
| Performance: | 0-15 CFM (0-25.48 m3/hr) at 60 Hz (adjusted via pressure relief valve) |
| Airline Length: | 100 feet (30.4m) maximum, from pump to respirator (sold separately) |
| Noise Level: | At Pump: 95 dB At 6 feet (1.82m): 85 dB At 10 feet (3.04m): 78 dB |
| Temperature Range: | 32°F - 104°F (0°C - 40°C) |
Motor:
| HP: | 1 1/2 HP, TEFC continuous duty |
| Certifications: | UL Listed, CSA Certified |
| Volts: | 115V/230 VAC, Single Phase, 60 Hz |
| Current Draw: | 16 A @ 115V (8.4 A @ 230 V) |
| RPM: | 1725 |
| NEMA Nom Eff: | 75.0 |
| Cord: | 12' (3.65m) 12/3C AWG SJOOW-A 300V neoprene medium duty |
| Plug: | 20A 125V AGP Type, hazardous location |
Blower Dimensions:
| Length In (cm) | Width In (cm) | Height In (cm) | Weight Lbs (Kg) |
| 27" (68.5 cm) | 10" (25.4 cm) | 15" (38.1 cm) | 122 lbs (55.33 kg) |
Sold/Each
Related Products
Allegro 9833-E Ambient Air Pump, Three-Worker, European - 1 Each
Allegro
MSRP:
$8,155.86
$3,670.14
The easiest way to meet your needs for portable air sources for up to three respirator users or two hood users. Available in explosion proof configurations for special applications. Applicable for...
AL-9833-E
Allegro 9806 Model A-300, Ambient Air Pump - 1 Each
Allegro
MSRP:
$1,577.11
$985.69
Portable & light weight air source, designed for one full or halfface respirator user. Solid performance in applications such as painting, cleaning, or chemical handling operations.
Product...
AL-9806
Allegro 9832 Ambient Air Pump A-1500 TE - CLOSEOUT
Allegro
$4,442.67
Portable air source for up to three full or half face respirator users, or two hood users. Solid performance in multi-worker applications, cleaning, sanding or chemical handling operations...
AL-9832
Allegro 9508 Air Driven Blower - 1 Each
Allegro
MSRP:
$3,062.44
$1,914.03
Ideal for areas where a compressor is readily available. The air motor is a non-electrical device reducing the possibility of igniting flammable gases. It includes a filter and...
AL-9508

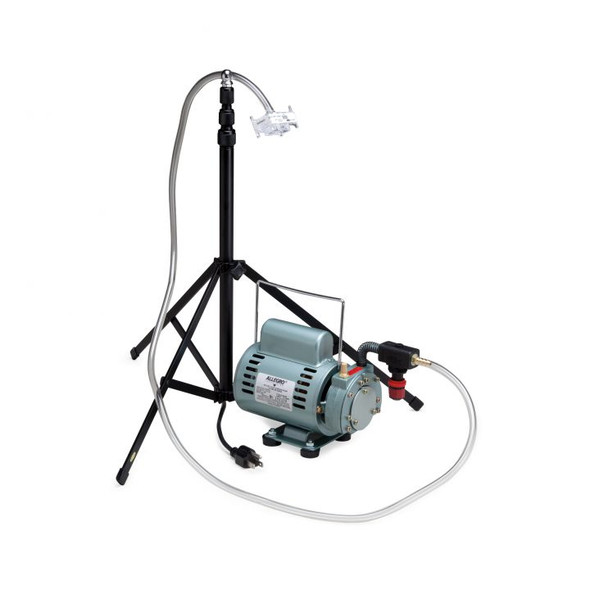

Allegro 9801 T-101 Jarless Sampling Pump - 1 Each
