Allegro

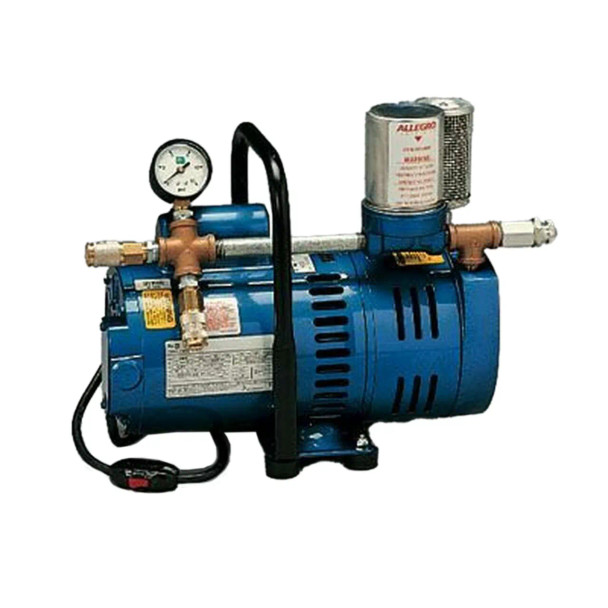

Allegro 9821 Model A-750 - 1 Each
- SKU:
- AL-9821
- UPC:
- 806808001122
- MPN:
- 9821
- Availability:
- Ship 3-5 business days
- Weight:
- 59.00 LBS
- Width:
- 11.50 (in)
- Height:
- 15.50 (in)
- Depth:
- 21.50 (in)
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 4 or above | and get 5% off |
Frequently bought together:
Description
Portable & lightweight air source for one hood user, or up to two full or half face respirator users. Solid performance in applications such as painting, cleaning, sanding or chemical handling operations.
Product Specifications:
Construction:
- Rigid metal base and housing
- Brass and galvanized steel plumbing
- Quick-connect OBAC fitting
- Adjustable brass pressure relief valve
- Steel handle
- Powder coated blue
Pump:
- Type: Oil-less, rotary vane
- Vanes: Carbon construction (4ea/ replaceable) (2 in (5.0cm) X 1.5 in (3.8cm) X 0.219 in (.55cm))
- Inlet Filter: 50 Micron felt material with metal grid inlet filter housing.
- Exhaust Filter: 0.3 Micron HEPA
- Pressure Gage: 2 in (5.08cm) face, steel housing (0-15 psi (0-1.03 bar))
- Pressure: 2-12 psi (.14-.83 bar) working (15 psi (1.03 bar) max)
- Performance: 0-10 CFM (0-16.99 m3/hr) @ 60 Hz (adjusted via pressure relief valve)
- 0-8 CFM (0-13.59 m3/hr) @ 50 Hz (adjusted via pressure relief valve)
- Airline length: 100 feet (30.4m) maximum from pump to respirator (sold separately)
- Noise level: At pump: 90 dB
- At 6 feet (1.82m): 74 dB
- At 10 feet (3.04m): 72 dB
*Warning: Ambient Air Pumps are not to be used with generators
**Warning: Air inlet to the pump must be located where breathable air can be assured at all times
Motor:
- HP: 3/4 HP
- Certifications: UL Recognized
- Volts: 115V/230V AC, Single Phase
- RPM: 1725 RPM @ 60Hz / 1425 RPM @ 50Hz
- Current Draw (9821): 115V 9.05A / 230V 4.6A @ 60Hz
- Current Draw (9821-E):110V 8.3A / 240V 4.8A @ 50Hz
- Cord: 6 in (1.83m) 16/3 AWG SJTW with integrated ON/OFF switch
- Plug: Integrated NEMA 5
Dimensions:
Length: 16 in
Width: 9 in
Height: 13 in
Weight: 53 lbs
Sold per Each.
which are known to the State of California to cause Cancer & Reproductive Harm.
For more information go to www.P65Warnings.ca.gov.
Important Notice: All Respirators, Cartridges, and Filters to be returned must be unopened and in it's original packaging. All opened packages are not returnable.
Related Products

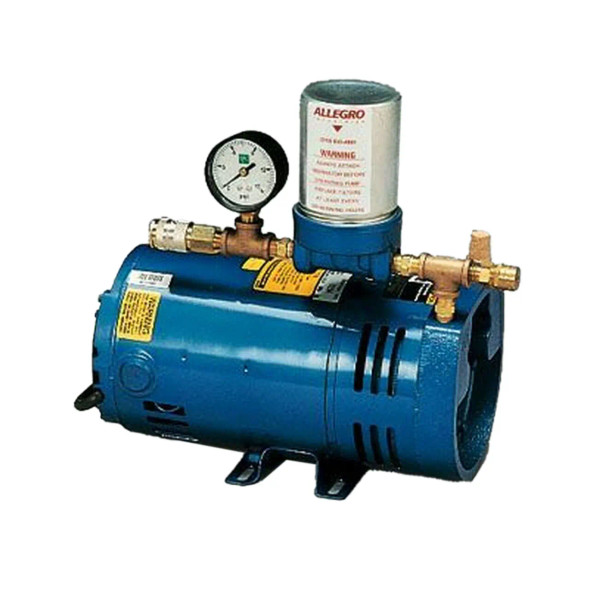

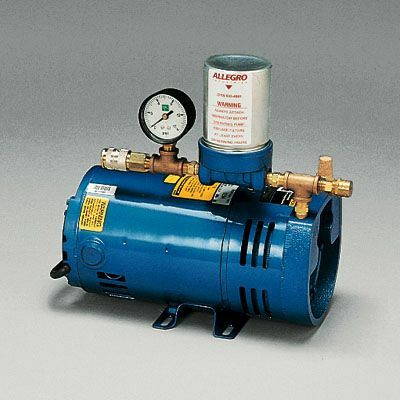

Allegro 9806 Model A-300, Ambient Air Pump - 1 Each
