Features:

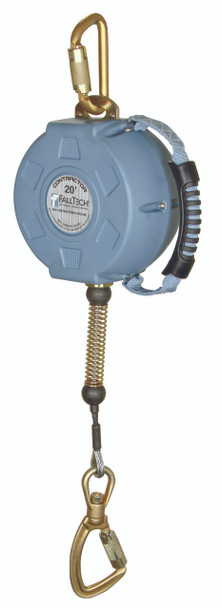

- Rugged, lightweight design. Full inertial brake mechanism.
- Load-indicating swivel carabiner with 3,600 lb. gate.
- Rated for one worker up to 310 lbs.
- Meets ANSI Z359.1-2007, ANSI A10.32 and applicable OSHA requirements.
Specifications:
Cable |
3/16", 7X19 galvanized steel |
Connector |
Alloy Steel; Min. 5,000 lbs. tensile strength |
Connector Gates |
Alloy Steel; Min. 3,600 lbs. front load and side load |
Tensile Strength |
3,000 lbs. |
Max. Capacity |
310 lbs. |
Max. Freefall |
24'' |
Avg. Arrest Force |
916 LBS |
Max. Elongation |
29'' |
ANSI |
Class B |
Available Options:
FallTech Model # |
Size |
Availability |
727620 |
20' |
1-2 Days |
727630 |
30' |
1-2 Days |
727650 |
50' |
1-2 Days |
Relevant Standards:
OSHA |
CFR1926.502, CFR1910.66 |
ANSI |
Z359.14-2012 |
Warnings:
Read, understand and follow all labels and instructions prior to use.
Inspect before each use.
Remove from service if there is evidence of damage or excessive wear.
Never attach a Restraint Lanyard to the front or side D-Rings.
Sold/Each
