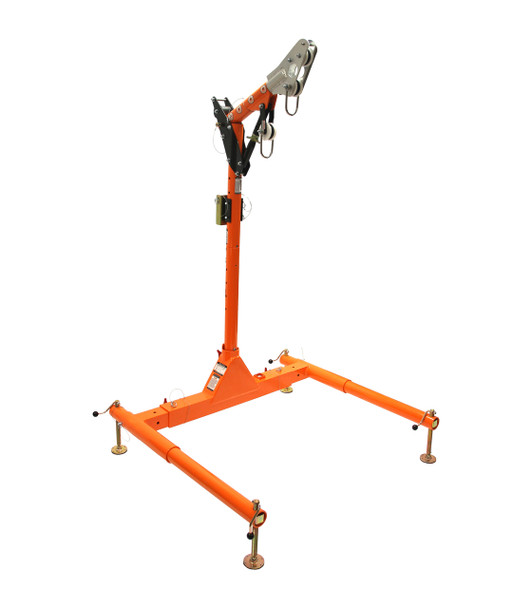

FallTech 6050128 5pc Confined Space Davit System 12" to 29" - 1 Each

Modular assembly of functional basic components joined in a system, allowing you to work with confidence in Confined Space Entry and Retrieval applications and still maintain the flexibility to modify the system to meet your needs. Lightweight aluminum blended with rugged steel elements throughout, the 5pc Davit System operates with full adjustability and enduring performance.

Features:

• 5pc System consists of Davit Arm, 3pc Portable Davit Base and 33″ Lower Mast Extension
• Davit Arm adjusts from 12″ to 29″ and includes Receiver Bracket for FallTech Winch or SRL-R devices
• Portable Davit Base width adjusts from 38″ to 65″ with 4 preset adjustment positions
• Davit Base includes integral bullseye level and threaded adjustable leveling feet

System Performance Specifications

Minimum Strength Ratings by Use

• Moment Rated: 5,750 lbs. Minimum
• Rescue Configuration: 5,000 lbs. Minimum
• Entry/Egress Operation: 1,800 lbs Minimum

Number of Users and Weight Capacities

• Rescue Configuration: 2 Users Max. 310 lbs each
• Entry/Egress Operation: 1 User Max. 310 lbs

Relevant Standards:

• OSHA: 1926.502

Warnings:

Read, understand and follow all labels and  instructions prior to use.
Inspect before each use.
Remove from service if there is evidence of damage or excessive wear.
Remove from service if there is any signs of activation.
For use up to Max 2' below the user's dorsal D‐ring.

Sold/Each
