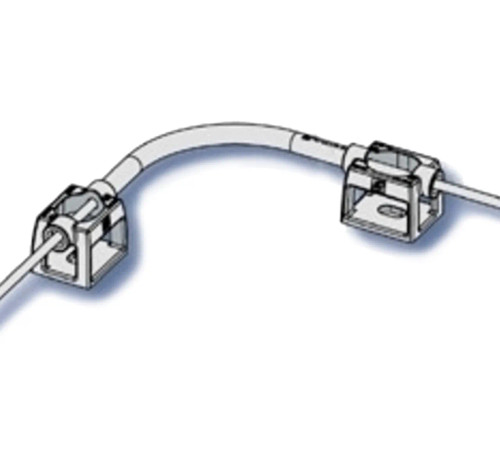

Tractel J3666878 Travspring Corner Kit

The Travspring® is a horizontal lifeline system that is easy to install and can allow up to five users. These systems can be permanent or temporary and no special training or tools are required to install. It comes with a visual tension indicator and a new in-line energy absorber. This in-line energy absorber look like a big spring hence the name Travspring®. This is a proximity horizontal lifeline system meaning that you must manipulate your lanyard when traversing
through anchor points.

As with all fall protection systems, a professional engineer or a qualified person must certify the design and installation of them. These systems can be mounted on the wall or on ground. They must not be used as an overhead system. When a fall occurs, the energy absorber deploys or un-winds acting as the visual indicator that something has happened.

Specifications:

•  Stainless steel
• 8 x 8 in. (204 x 204 mm)
• Holes for 1 ⁄2-in. (12 mm) fasteners

Benefits:

• The Travspring® system can be permanently or temporarilyinstalled. The system can be portable.
• The system length is unlimited and it can go around corners
• Maximum spacing between anchor points is 50 ft. (15 m)
• Up to five users on one system
• Easy to install with common tools

Features:

• Can be used for fall arrest or fall restraint
• All components of the system are stainless steel with the option of ordering galvanized wire rope
• Lightweight components
• Comes with a tension indicator and tensioner
• Sold in component parts
• Visual impact indicator (energy absorber un-winds)
• Inexpensive connectors required

Applications:

• Construction sites
• Steel erection
• Pipe racks
• Concrete structures
• Roof work
• Manufacturing plants

Applicable Standards:

• OSHA 1910, subpart D: Walking and working surfaces
• OSHA 1910, subpart F: Powered platforms, manlifts and vehicle-mounted work platforms, appendix C
• OSHA 1926, subpart M: Fall Protection
• ANSI Z359.1 safety requirements for personal fall arrest systems, sub-systems, and components
• CSA Z259.13-04: Flexible horizontal lifeline system
• CSA Z259.16-04: Design of active fall protection systems

Sold/ Each

Warnings: When using a horizontal lifeline as a fall arrest system, you must ensure that there is enough space below the walking/working surface to fall and not hit anything. Tractel® Ltd. can supply you with system deflection if you contact us. When used as a permanent installation the Travspring® horizontal lifeline system is an engineered designed system. This means that before any installation commences, a specific technical study of the site must be undertaken. This would include a shop drawing showing the system layout, general notes, connection details and expected loading. These shop drawings are to be reviewed by a professional engineer licensed to work in the state or province that the project is in. A site study may be required if drawings are not available to use when preparing these shop drawing. The shop drawings will also show the total fall height required if the system is designed for fall arrest. Tractel® Ltd. or the Tractel® Ltd. computer loading program will determine system loading. (Tractel® also recommends that similar steps be taken for temporary installations.)
