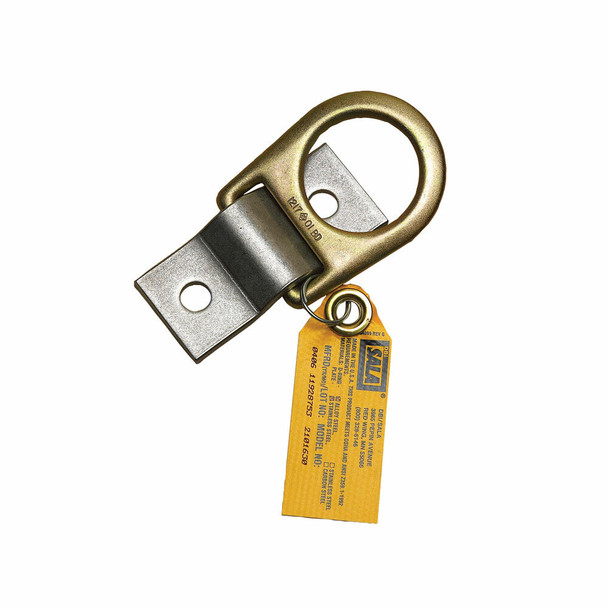

3M DBI 2101634 D-ring Anchorage Plate, Compact And Lightweight Design, High Strength Steel Construction, Rugged And Corrosion Resistant Material - 1 Each

Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.

Features:

• Detent pin for use with 2101000 concrete socket
• Swiveling D-ring tie-off point
• Use vertically in wall or horizontally in ceiling (both components)
• Compact and lightweight design
• High strength steel construction
• Rugged and corrosion resistant material

Specifications:

Attachment Type Info: Bolt/Weld
Install Type: Permanent
Capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
Velocity Ship: Yes
iSafe Equipped: No
Label: Vinyl
Physical Dimensions: 0.25x2.00x4.50 (in)
Physical Weight: 1.20 lbs (0.5kg)
Product Styles: Fixed
Product Types: Anchors for Steel
Standards: OSHA 1910.66, OSHA 1926.502,ANSI A10.32,ANSI Z359.1

Sold/Each
