Allegro

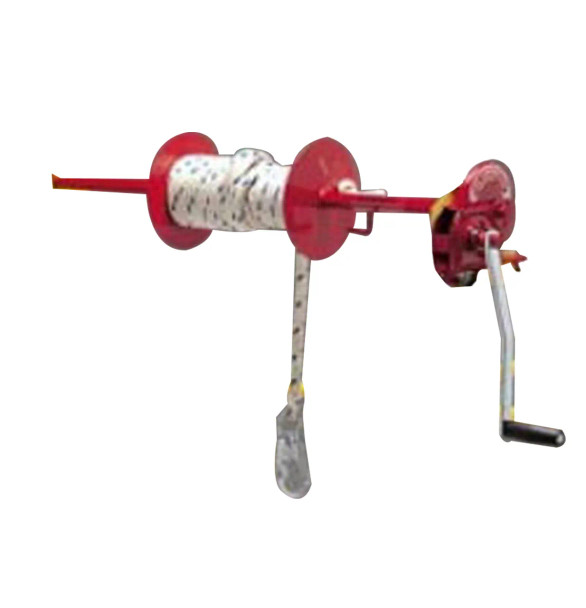

Allegro 9401-10 Guard Rail Winch - CLOSEOUT
- SKU:
- AL-9401-10
- UPC:
- 806808001504
- MPN:
- 9401-10
- Availability:
- Ship 3-5 business days
- Weight:
- 45.00 LBS
- Width:
- 14.10 (in)
- Height:
- 14.00 (in)
- Depth:
- 43.00 (in)
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 4 or above | and get 5% off |
Frequently bought together:
Description
Raising and lowering equipment into confined space can be impossible without this durable guardrail winch*. It is lightweight and portable and allows for easy mounting on Allegro guardrails.
Features:
- 300 lbs. (136.07 kg) workload limit
- 3:1 safety factor
- 3” (7.6 cm) drum center
- 1” (2.5 cm) diameter center pipe 36” (91.4 cm) in length
- Two 7” (17.7 cm) discs (11” (27.9 cm) apart) to hold rope in place
- ½” (1.27 cm) holes (2” (5.0 cm) apart) accommodates 3/8” x 2¼” (0.95 cm x 5.7 cm) Loxall pins
Crank:
- Gear covers
- Bronze bushings
- Two independent ratchet systems for additional load security
- Double disc automatic load lock braking system to assure positive load control
Snap Hook:
- 9/16" (1.42 cm) Safety snap design
Rope:
| Length: | 35' (10.66 m) |
| Material: | ½” (1.27 cm) Dura-Plex braided |
Leg Extensions:
- High quality steel
- Painted Yellow
Dimensions:
| Length In (cm) | Width In (cm) | Height In (cm) | Weight Lbs (Kg) |
| 43” 109.2 cm) | 9 1/4” (23.5 cm) | 32” (81.3 cm) | 39 lbs. (17.6 kg) |
Sold/Each
Videos
View AllClose
Related Products
Allegro 9401 Manhole Guard Rail - 1 Each
Allegro
MSRP:
$511.11
$319.44
Designed to protect an area 33" x 33", the 42" high Allegro Manhole Guard Rail* collapses to only 44" square x 4" for easy storage. Weighing 34 lbs., the strong, one inch tubular .078 gauge steel...
AL-9401
Allegro 9401-50 Tent Heater - CLOSEOUT
Allegro
$803.33
The lightweight Tent Heater offers the rugged, heavy duty design of all steel housing with all-enclosed tube heating elements and a sealed motor for maximum durability. This powerful...
AL-9401-50

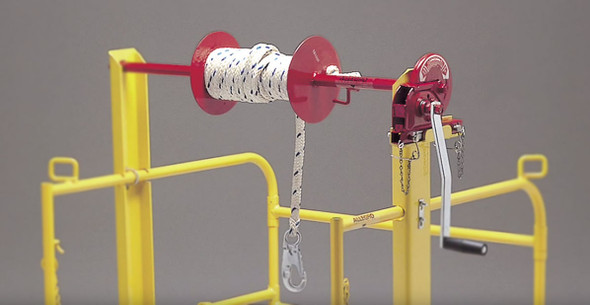

Allegro 9401-36 35' Winch Rope
