Tractel BeamSlide sliding beam anchor

The BeamSlide sliding beam anchor is a mobile device designed for personal tall protection on structural beams. The flange widths range from 4 to 14 in. (100 to 355 mm) and flange thickness up to 1.5 in. (38 mm)

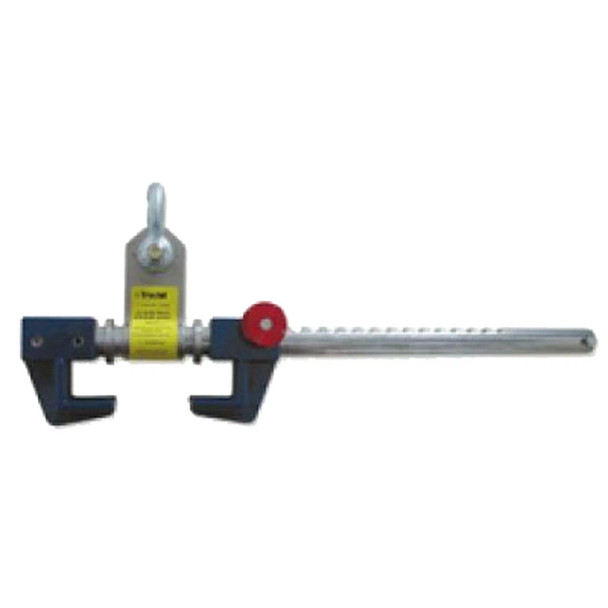

The BeamSlide sliding beam anchor can be attached to the top or bottom of a structural beam. The cross bar has grooves running along its length. It contains a mobile and stationary jaw.

Features:

• The presence of rollers allows the BeamSlide sliding beam anchor to move freely along the beam tlange.
• The jaw automatically secures its position on the cross bar.
• The anchor can be installed on the beam flange quickly and easily.
• The extension plate with a shackle provides a connection between the beam anchor and the shock absober connected to the worker's hamess.

Applicable standards:

• ANS|A10.32
• OSHA 1926.500, subpart M1 '31 0.66, appendix G and 2359.1
• Manufactured in accordance with ANSI, OSHA and GSA requirements.
• Meets andforexceeds 5,000 lbs. [22.2 kN] strengtit requirements for anchorage point.
• Refer to specific standards as federal, state, local or provincial regulations may differ.

Sold/Each

Warning: The use of a shock-absorbing lanyard or a retractable lanyard is mandatory. Always select an anchorage point that is rigid and capable of supporting 5,000 lbs. (22.2  kN) per person attached. Unit must close completely to retain structural strength. Always work directiy under the anchorage point to avoid a swing fall injury.
