FallTech 6033018 SteelGrip Temporary Cable HLL System - 1 Kit

SteelGrip® Cable Horizontal Lifeline and Stanchion Systems provide temporary, portable and continuous anchoring for worksite conditions where typical anchorages along a walking surface are limited or nonexistent. SteelGrip HLLs can be configured as single or multi-span systems adapting to specific user’s anchoring needs.

Features:

• Pre-configured in 30´ and 60´ single-span and 80´ and 100´ multi-span systems
• Single-span systems include one Coil Energy Absorber and two Stanchions while Multi-span systems
• 42 Plated Steel I-Beam Stanchions fit beam flanges up to 2¼ thick
• Plated Steel I-Beam Clamps available with flange width ranges of 4 to 12, 4 to 18 and 4 to 24 and include Steel Wing Nut adjusters

Materials Specifications:

• Cable Lifeline: 3/8 Galvanized Steel 7x19 5,000 lbs Min Static Strength
• I-Beam Stanchion: Plated Steel Post, Base andClamp 8,000 lbs Min Static Strength
• Carabiner: Plated Alloy Steel 5,000 lbs Min Statc Strength with 3,600 lbs Gate Strength
• Turnbuckle: Galvanized Steel
• Shackle: Galvanized Steel
• Coil Energy Absorber: Stainless Steel

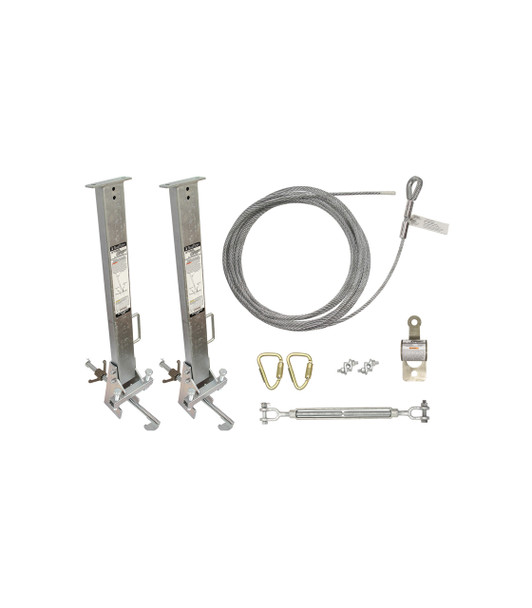

All SteelGrip® Cable HLL Systems include:

• SteelGrip® Stainless Steel Coil Energy Absorber (1 or 2 as needed)
• SteelGrip® I-Beam Stanchions (2 or 3 as needed)
• Intermediate Pass-through Bracket (for multi-span systems only)
• 21¾ Galvanized steel jaw and jaw Tensioning Turnbuckle with 12 adjustment
• 2 Alloy Steel Carabiners and Wire Rope Clips (plus Steel Shackle for systems greater than 60´)
• 3/8 Galvanized Steel Cable with thimble-eye termination

Relevant Standards:

OSHA: 1926.502 and 1910.14

Warnings:

• Read, understand and follow all labels and  instructions prior to use.
• Inspect before each use.
• Remove from service if there is evidence of damage or excessive wear.

Sold/Kit
