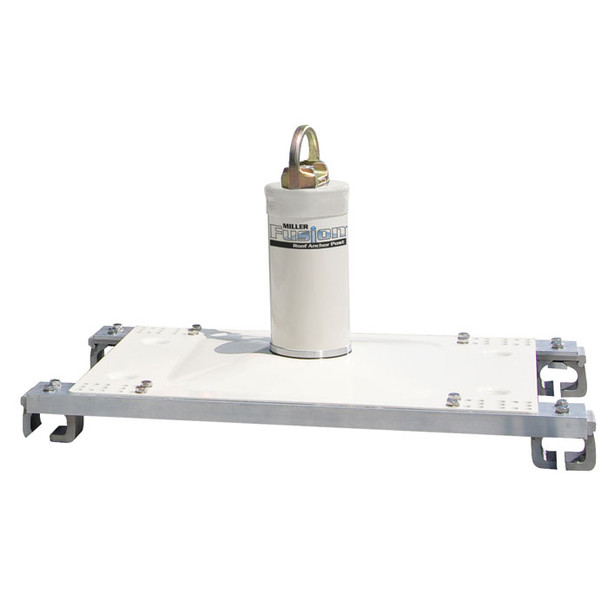

Miller X10000 Fusion Roof Anchor Post - 1 Each - Closeout

• Significantly reduces the fall forces on the roof structure – In the event of a fall, the top of the Miller Fusion Roof Anchor Post reorients with the force in a direct line and activates the patent-pending energy absorber.
• Durable design that withstands the changing outdoor environment – Internal components are made of stainless steel
• Double coating for extra protection – The steel post and base are plated with zinc followed by a premium powder coating for two layers of protection
• Versatile single-point anchor adapts to a wide range of roof designs
• Models for steel decking, concrete and wood can be used on other non-roof structure

Applications

• Roof inspection and maintenance
• Air conditioning, ventilation fan and solar panel maintenance
• Skylight cleaning
• Debris removal from gutters
• Installation and maintenance of satellite dishes and other communication systems

Miller Fusion Roof Anchor Post adapts to a variety of roof structures:

Standing Seam Design

• Aluminum clamping mechanism is designed to pre-install to the base plate and is self centering for easy installation
• The clamping bolts are tightened from above the plate for easy fastening and inspection
• Can be used for permanent and temporary installations
• Three models are available to accommodate standing seam spacing up to 24-in. (610 mm)

Metal Sheathing Design

• Designed to attach to metal sheathing with a minimum 24 gauge (0.024-in. [.61 mm]) thickness
• Hardware kit includes sealing materials to prevent water damage to roof

Membrane/Built-up Design

• Easy-to-install toggle kit fastens through membrane, insulation and into metal sheathing, wood sheathing or concrete
• Models available for built-up roof thicknesses accommodate up to 10.5-in. (267 mm)

Wood Design

• Installs into plywood with minimum thickness of 5/8-in. (15.9 mm) CDX
• Includes lag screw kit
• Designed for temporary installation only

Concrete Decking Design

• Installs into concrete decking with minimum thickness of 6.5-in. (165 mm) and minimum concrete compressive strength of 3000 PSI (20.7 MPa)
• Includes concrete expansion anchor kit

Multi-Purpose Metal Sheathing, Wood and Concrete Design

• This multi-purpose post uses the same base as models X10011, X10040 and X10050
• Miller specified hardware must be purchased for this base. (This model does not include hardware)

Sold/Each
