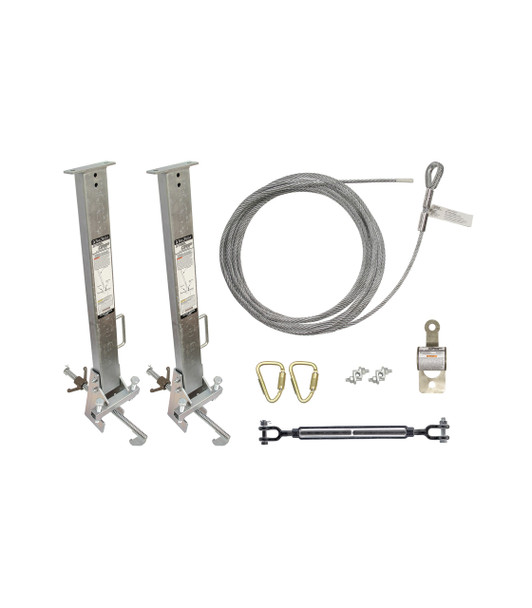

FallTech SteelGrip Temporary Cable HLL System and Stanchions with 24" beam clamps - Kit

SteelGrip Cable Horizontal Lifeline and Stanchion Systems provide temporary, portable and continuous anchoring for worksite conditions where typical anchorages along a walking surface are limited or nonexistent. SteelGrip HLLs can be configured as single or multi-span systems adapting to specific user’s anchoring needs.

Features

• Complete 30',60',80',100' Single-span Temporary Cable HLL System
• Includes two I-beam stanchions with 4" to 24" clamping range.
• 3/8" galvanized steel cable with one-end terminated and thimbled
• features 1 stainless steel coil energy absorber and 2 connecting carabiners
• In-line tension indicator included with 2 galvanized steel shackles
• System also includes wire rope clips and tensioning turnbuckle
• Cable HLL System meets OSHA 1926.502 and 1910.140 regulations

Materials Specifications:

• Cable3/8" galvanized steel; 5,000 lb min. static strength
• StanchionsPlated carbon steel post, base and clamp; 8,000 lb min. static strength
• CarabinersPlated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

Relevant Standards:

OSHA: 1926.502 and 1910.14

Warnings:

• Read, understand and follow all labels and  instructions prior to use.
• Inspect before each use.
• Remove from service if there is evidence of damage or excessive wear.

Sold/Kit
