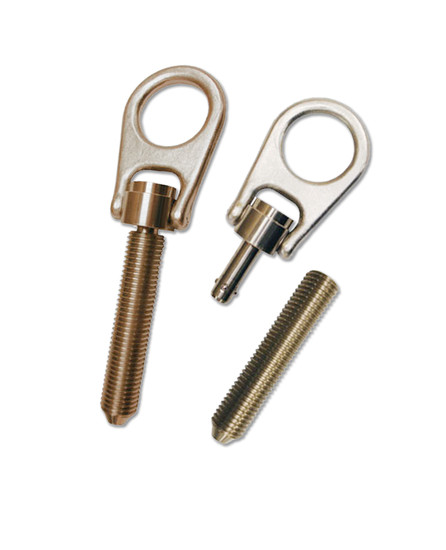

3M DBI 2101004 Concrete Detent Anchor Assembly - 1 Each

Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.

Features:

• Installs into 7/8" (22 mm) concrete hole with adhesive
• Use vertically in wall or horizontally in ceiling
• Reusable detent D-ring assembly - extra sockets (#2101000) available
• Socket cover cap included
• Compact and lightweight design
• High strength steel construction
• Rugged and corrosion resistant material
• Swiveling D-ring tie-off point

Specifications:

Attachment Type Info: Screw/Adhesive
Install Type: Permanent
Capacity: 310 lbs. (141 kg)
iSafe Equipped: No
Label: Vinyl
Physical Dimensions: 2.00x0.30x7.25 (in)
Physical Weight: 1.00 lbs (0.5kg)
Product Styles: Fixed
Product Types; Anchors for Concrete
Standards: OSHA 1910.66, OSHA 1926.502,ANSI Z359.1

Sold/Each
