Allegro

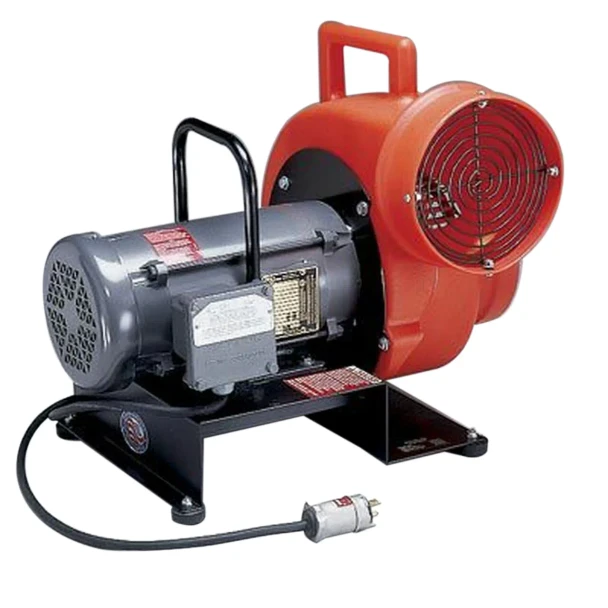

Allegro 9503-E 220V/50Hz Heavy Duty Explosion Proof Blower
- SKU:
- AL-9503-E
- UPC:
- 806808121806
- MPN:
- 9503-E
- Availability:
- Ship 3-5 business days
- Weight:
- 76.00 LBS
- Width:
- 14.00 (in)
- Height:
- 16.00 (in)
- Depth:
- 17.00 (in)
- Shipping:
- Calculated at Checkout
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 4 or above | and get 5% off |
Frequently bought together:
Description
Electric, explosion-proof motor is UL/CSA listed. Single-phase motor includes Hazardous Location NEMA rated 115V plug (included). ABS housing provides non-sparking safety. Meets Class I, Divisions 1 and 2, Group D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements.
Smart compact design allows for easy use and storage without sacrificing airflow. It meets explosion proof requirements. Two 8” (20.3cm) ports offer positive ventilation or fume extraction.
Construction:
- 8” (20.3cm) flange on intake and exhaust side
- Tough safety orange polyethylene construction
- One piece housing with integrated handle
- 12 gauge, black powder coated steel base
- Steel handle
- Aluminum blower wheel with aluminum hub
- Steel black powder coated grill
- Equipped with five rubber feet
Motor:
| HP: | 3/4 HP, UL Listed, CSA Certified, CE Registered |
| Voltage: | 220V AC, 50 Hz, Single Phase |
| Max RPM: | 1425 (Loaded at 220 Volts, 50 Hz) Nom EF: 66% |
| Current Draw: | 4.8 A |
| Cord: | 25' (7.62m) SJOOW, 12/3 AWG, 90C 300V |
| Plug: | NEMA 220V 20 A, Hazardous Location "ECP" type |
Ducting: (Optional)
- Black, single-ply lightweight vinyl/polyester, neoprene coated (250°F (121.1°C) temperature resistant)
- Retractable, non-collapsible design, Class I hard drawn spring steel wire helix, ASTM 227 Specs
Blower Dimensions:
| Length In (cm) | Width In (cm) | Height In (cm) | Weight Lbs (Kg) |
| 21" (53.3 cm) | 17" (43.1 cm) | 19" (48.2 cm) | 76 lbs (34.4 kg) |
Explosion Proof Model:
| Free Air | One 90° Bend | Two 90° Bends |
| 1570 | 1100 | 900 |
| 76 lbs. | 3/4 hp | 11A/115/230V |
Sold/Each
