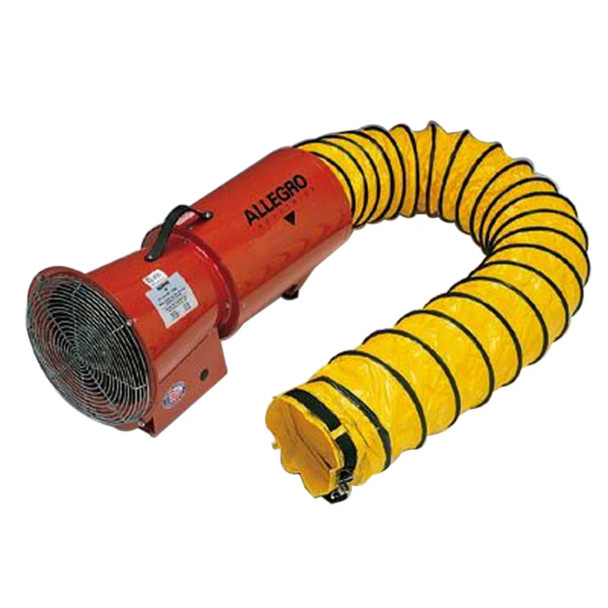

Allegro 9514-E 220V/50Hz Axial Blower with Canister & 15' of Ducting

SKU:
AL-9514-E
UPC:
806808121837
MPN:
9514-E
Availability:
Ship 3-5 business days
Weight:
32.00 LBS
Width:
14.00 (in)
Height:
15.00 (in)
Depth:
28.00 (in)
Shipping:
Calculated at Checkout

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 4 or above and get 5% off
  • Allegro 9514-E 220V/50Hz Axial Blower with Canister & 15' of Ducting. Shop now!
  • Allegro 9514-E 220V/50Hz Axial Blower with Canister & 15' of Ducting. Shop now!
MSRP: $1,530.00
$956.25
— You save $573.75
Frequently bought together:

Description

Engineered for convenience, this 8” axial blower is an all-in-one ventilation system. The design allows ducting to collapse into a built-in canister for easy storage. The unit can also be stored vertically to use a minimum amount of space. Includes blower, built-in storage canister and 25 feet of ducting. Certified to CSA STD C22.2 No 113. Air delivery certified CEESI.

High output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Allegro’s Axial Blower is certified to CSA STD C22.2 No 113. Air delivery is certified CEESI. Available as blower only or complete unit with 25’ (7.62) of ducting and storage canister.

Construction:

  • Epoxy powder coated in “safety orange”
  • Flange on intake side for optional inlet adapter
  • 18 gauge cold rolled steel housing
  • 14 gauge steel enclosed panel to protect electrical components
  • Welded motor mount construction
  • Steel/chrome plated grill
  • Handle made of 3-ply rubber belting and equipped with 4 feet

Motor:

HP: 1/3 HP
Certifications: UL Recognized, CSA Certified
Voltage/Hz: 120V AC, 60 Hz Single Phase
Max RPM: 3200
Current Draw: 3.0A
Cord: 6' (1.82m) AWG 16/3 SJTW 105C 300V neoprene medium duty
Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V

Fan:

  • Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
  • Moving fan mounted 1 5/8” (4.12cm) from grill for safety, 5/16” (.79cm) grill gap

Ducting:

  • Retractable, non-collapsible design
  • Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180°F (82.2°C)
  • Yellow color with black weather-strip and integrated nylon straps
  • Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

Blower Dimensions:

Description Blower P/N Length
In (cm)		 Width
In (cm)		 Height
In (cm)		 Weight
Lbs (Kg)
Blower w/ 15' Duct & Canister 9514-E 28" (71.1) 13 5/8" (34.6) 15" (38.1) 32 (14.5)

Explosion Proof Model:

Free Air One 90° Bend Two 90° Bends
1275 661 582
32 lbs. 1/3 hp 3A/120V

Sold/Each

 WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP),
which is known to the State of California to cause Cancer & Reproductive Harm.
For more information go to www.P65Warnings.ca.gov.
