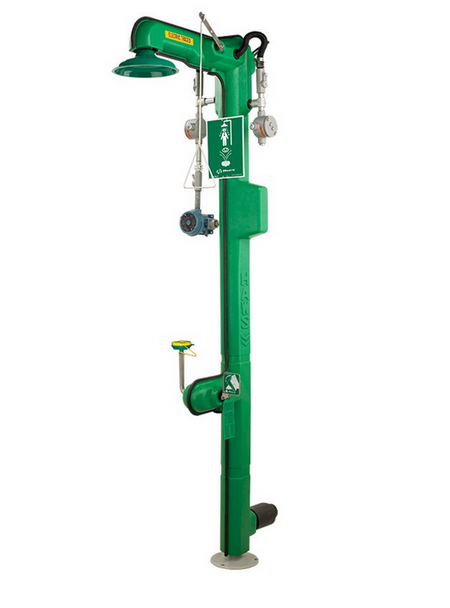

Haws 8317CTFPC1D1 Freeze Protected Combination Shower & Eye Face Wash

Haws Model 8317CTFPC1D1 heat traced combination shower and eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors’ office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature’s ocular cavity drain. AXION MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets. Virtually eliminating mishaps, the unit’s safety features include: a thermal actuator bleed valve, 120V thermostat cable double wrapping inside piping, 3/4" (1.9 cm) insulation surrounding piping and outside jacket to prevent freezing, as well as a universal emergency sign.

• Perfect for extreme weather conditions dropping down to -30° F (-34.4° C)
• Universal design allows for top or bottom water supply.
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Reducing installation time, entire unit is pre-built and fully water/pressure tested
• Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
• Rated Class 1, Div 1, Group B, C & D. Tempering code T6

Model 8317CTFPC1D1 is certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment. Model is CSA electrical certified.

Features:

• Axion® Eye/Face Wash Head
• Axion® Shower Head
• Flow Regulation
• Freeze Protected
• Fully Assembled
• System Certified
• Upgraded Ball Valves

Certifications:

• Buy America Act
• CSA Certified

Sold/ Each

 WARNING: This product can expose you to chemicals including Lead,
which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.

Important Notice: We will contact you if there are additional freight costs. A restocking fee of 25% will be applied for items returned.  Common carriers will deliver to the customer's receiving dock (the driver will not move or assist in moving the item after it has been dropped off).  It is up to the customer to pre-determine the type of delivery that is needed. Choose Standard delivery when you have a dock high loading area or have access to a forklift to unload the item from the delivery truck. Otherwise, please choose "Lift Gate Delivery".

Spec Sheet  Installation Drawing  Parts Breakdown Drawing  Operational-Maintenance Manual 1

Operational-Maintenance Manual 2  Limited Warranty
