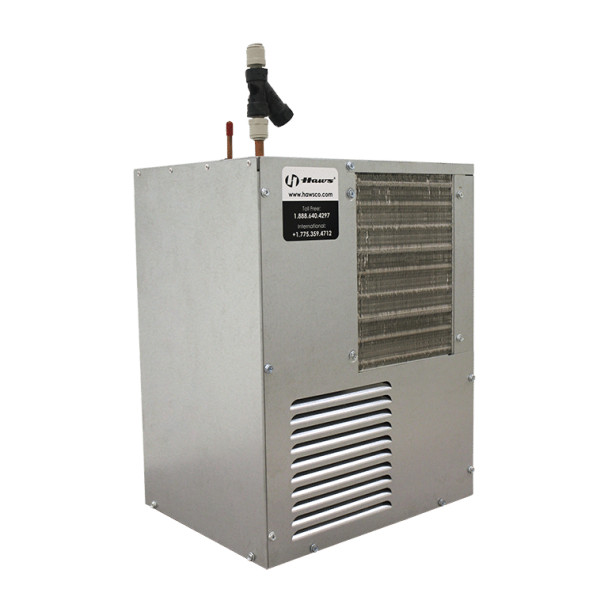

Haws HCR8 Remote Drinking Fountain Water Chiller

Model HCR8, 8 gph (30.3 L) remote water chiller provides 8 gallons per hour of chilled water.

Remote Drinking Fountain Water chiller

The Haws model HCR8 remote chiller provides 8 gallons (30.3 L) per hour of 50° F (10° C) +/- 5° cold water to a wide variety of fountains. This model is rated at 115V, 60Hz, single phase, 5 amp service. It is constructed of heavy-gauge galvanized steel and its compact style can be concealed under a counter, between or within walls (check local codes) or high on a wall or column. There are many other applications including pre-cooling of beverage dispensers, and machine coolant cooling.

• Cooling capacity of 8 gph (30.3 L) , 115V - 60Hz system with full load amps of 5, with a minimum 4" (10.2 cm) clearance for sides and back of unit.
• Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.

Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Specifications

Model HCR8 remote chiller is a hermetically-sealed R-134a refrigeration system and is capable of supplying water to a maximum of 2 bubbler stations and is designed to provide 8 gph (30.3 L) of water at 50° F (10° C) +/- 5°. The unit is rated at 115V, 60Hz, and 5 amps. NOTE: For remote installations; locate unit no more than 8ft (2.4m) away from fixtures which it supplies. Chilled water tubing/piping run must be covered with appropriate insulation in order to conserve temperature and avoid condensation.

⚠️ Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Sold Each
