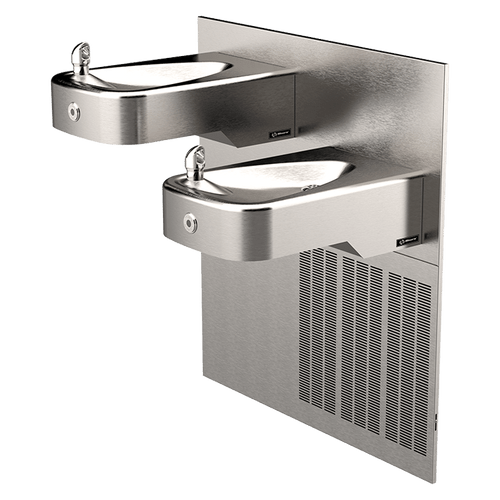

Haws H1117LN.8HO2 Chilled Vandal-Resistant Motion-Activated Fountain

Model H1117LN.8HO2, ADA vandal-resistant, wall mounted, touchless 14-gauge stainless steel drinking fountain with back panel, and 100% lead free waterways. FOR INDOOR USE ONLY.

ADA Chilled Vandal-Resistant Motion-Activated Fountain

Model H1117LN.8HO2 ADA vandal-resistant electric drinking fountain provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted fountain incorporates sensor operated stainless steel solenoid valves controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

• Touchless operation for safety and peace of mind
• Vandal resistant components include the bubblers, drains and bottom plates
• 30-second obstruction time-out to reduce tampering of sensor
• 100% lead free waterways
• Beautiful satin finish resists stains and corrosion
• 14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
• Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
• One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Specifications

Model H1117LN.8HO2 low profile electric ADA vandal-resistant wall mounted motion-activated drinking fountain shall include dual 14-gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) thick stainless-steel back plates, sensor operated stainless steel solenoid valves with 30-second obstruction time-out controlled by a transformer, 100% lead free waterways, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4" NPT concealed all cast-brass traps. The design allows the unit to be mounted to meet ADA or Child ADA specifications. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 ..... REQUIRES MODEL HCR8 and MTGFR.LG PRICED SEPARATELY.

⚠️ Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Sold Each
