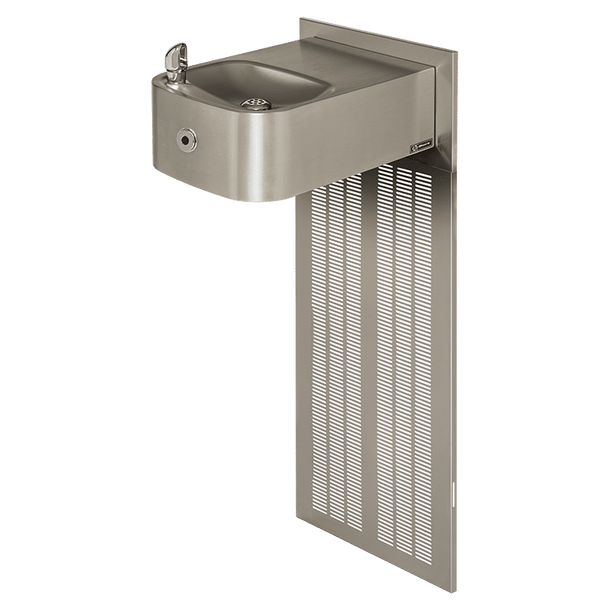

Haws H1109.8HO Chilled Vandal-Resistant ADA Motion-Activated Fountain

Model H1109.8HO, ADA vandal-resistant wall mounted, 18-gauge stainless steel, touchless chilled drinking fountain with 100% lead-free waterways. FOR INDOOR USE ONLY

Chilled Vandal-Resistant ADA Motion-Activated Fountain

The Haws H1109.8HO ADA vandal-resistant electric drinking fountain provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted fountain incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

• Touchless operation for safety and peace of mind
• Vandal resistant components include the bubbler, drain and bottom plate
• 30-second obstruction time-out to reduce tampering of sensor
• 100% lead-free waterways
• 18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
• Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
• Beautiful satin finish resists stains and corrosion
• Polished chrome-plated brass bubbler head with integral laminar anti-squirt flow eliminate water splash
• One-piece stamped bowl makes for an aesthetically pleasing and durable design

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.

Specifications

Model H1109.8HO ADA vandal-resistant wall mounted motion-activated chilled drinking fountain shall include an 18 gauge Type 304 Stainless Steel satin finish basin, sensor operated stainless steel solenoid valve with 30-second obstruction time-out controlled by a transformer, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, and 1-1/4" NPT trap. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 ..... REQUIRES MODEL HCR8 and MTGFR.SM PRICED SEPARATELY.

⚠️ Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Sold Each
